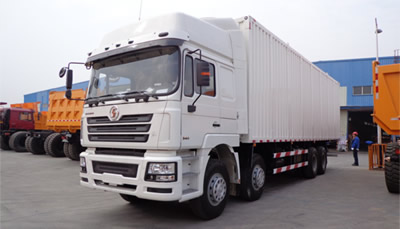

shacman trucks philippines

Driving type 8×4
Cabin New STEYR tech. F3000 cab, US. VISTEON interior design; 4-point air suspension;
air high back seat with rail; double sleeper; titanium alloy dash board;
radio with USB; 4 way adjustable wheel; double back window; air conditioner;
DC sun visor; top/side reflector optional.
Engine Model WP10.375 WEICHAI POWER
Feature BOSCH electronic controlled common rail with WEVB. Diesel, 4-stroke direct injection, 6 cylinder in line, radiator, turbo-charging.
Bore stroke (mm) 126×130
Displacement (L) 9.726
Power 375hp/276kw
Rated speed (rpm) 2200
Torque (N.m) 1460
Emission Euro 3
Gearbox Model RTD-11509C FAST technology
Shift mode Manual 9 forward 1 reverse
Torque (N.m) 1490
Rated speed (rpm) 2600
First shift ratio 12.4202
Electrical Battery 12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Axle Front 5.5ton MAN tech. Steering axle
Rear 13ton MAN tech. Single reduction, hub redactor driving
Steering ZF tech. Left/Right hand drive
Tyre 11.00R20 radial tyre 12+1 spare
Clutch 430 Diaphragm type, single dry frictional disc, hydraulic boosting
Suspension Spring leaf type
Chassis 850x300x8+5
Fuel tank 400L aluminum alloy with fuel reduction alert
Overall Dimension (LxWxH) 11995x2405x3720
Cargo Dimension (LxWxH) 9500x2326x800~2500
Wheel base (mm) 1800+4575+1400
Curb weight (kg) 13400
Front overhang/Rear overhang (mm) 1525/2690
Front track/Rear track (mm) 1939/1939
Approach angle/Departure angle () 18/12
Max speed (km/h) 99
