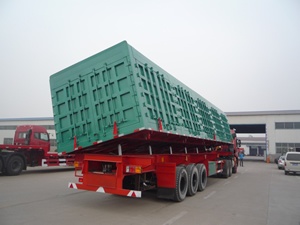

| REAR DUMP SEMI TRAILER – U-SHAPE | |
| Tare weight | 8730kg |
| Size | 8870mm *2500mm*3500mm |
| Chassis | Heavy duty and extra durability designed I beam; opting forT700, welded by automatic Submerged-Arc processes. Top plate 14mm .bottom plate 8mm .middle plate 14mm .height:500mm |
| Axle | 3 Fuwa 13T |
| Suspension | Mechanical suspension |
| Leaf spring | Leaf spring 90mm*11mm*10pcs |
| Cylinder | HYVA 196 |
| Floor | Floor 4mm side wall 3mm |
| Tire | 11.00R20 18PR triangle brand 13只 |
| Wheel rim | 8.0-20 Better brand 13只 |
| Kingpin | 3.5’’ bolt-in king pin |
| Landing gear | SAF brand two-speed, manual operating ,heavy duty landing gear 28T |
| ABS | 4S/2M |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Spare trie carrier | 1pcs |
| Tool box | 1pcs |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One shaft wrench |
